Android Gallery example

Android 에서 Gallery 위젯을 사용하는 예제

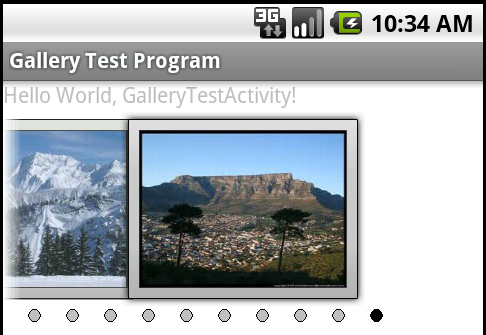

Gallery 상에서 중앙에 위치하는 이미지의 위치를 확인하여 Gallery 하단에 표시하는 기능을 추가해 보았다.

사용된 이미지들

images.zip

res/values/attrs.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>
 <declare-styleable name="GalleryTheme">
  <attr name="android:galleryItemBackground" />
 </declare-styleable>
</resources>

res/layout/main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:background="#ffffff">

 <TextView
     android:layout_width="fill_parent"
     android:layout_height="wrap_content"
     android:text="@string/hello" />

 <Gallery
  android:id="@+id/gallery"
  android:layout_width="fill_parent"
  android:layout_height="wrap_content"/>

 <LinearLayout
  android:id="@+id/dotPanel"
  android:orientation="horizontal"
  android:layout_width="fill_parent"
  android:layout_height="wrap_content"
  android:layout_gravity="center">
 </LinearLayout>

</LinearLayout>

GalleryTestActivity.java

package com.dearpeople.android.test.gallery;
import android.app.Activity;
import android.content.Context;
import android.os.Bundle;
import android.util.Log;
import android.view.Gravity;
import android.view.View;
import android.widget.AdapterView;
import android.widget.Gallery;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.TableLayout.LayoutParams;
public class GalleryTestActivity extends Activity {
    /** Called when the activity is first created. */

 ImageView [] imageView;

    @Override
    public void onCreate(Bundle savedInstanceState) {
     super.onCreate(savedInstanceState);
     setContentView(R.layout.main);

     Gallery g = (Gallery) findViewById(R.id.gallery);
     g.setAdapter(new ImageAdapter(this));

     g.setOnItemClickListener(new AdapterView.OnItemClickListener() {
      public void onItemClick(AdapterView parent, View v, int position, long id) {
       //클릭된 경우에 실행됨
       //Fling시에는 실행안됨
      }
     });
     /* Gallery 중앙의 아이템(선택된 아이템)이 변경되면 실행됨 */
     g.setOnItemSelectedListener(new AdapterView.OnItemSelectedListener() {
   @Override
   public void onItemSelected(AdapterView<?> arg0, View arg1, int arg2, long arg3) {
    /* 첫번째 아이템이 선택된 경우 arg2의 값은 0 이다 */
    //Log.i("Gallery Event", "Gallery Current Viewing Item "+arg2);
    selectDot(arg2);
   }
   @Override
   public void onNothingSelected(AdapterView<?> arg0) {
   }
  });
     LinearLayout layout = (LinearLayout)findViewById(R.id.dotPanel);
     /* Gallery하단의 위치를 표시하는 작은 원의 갯수를 지정하여 그린다 */
     createDotPanel(this,layout,10);
    }

    private void createDotPanel(Context context, LinearLayout layout, int count){
     imageView = new ImageView[count];
     for(int i=0;i<count;i++){
      imageView[i] = new ImageView(context);
      LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(0, 0);
      params.width = LayoutParams.WRAP_CONTENT;
      params.height = LayoutParams.WRAP_CONTENT;
      params.leftMargin= 25;
      params.gravity = Gravity.CENTER;
      imageView[i].setLayoutParams(params);
      imageView[i].setImageResource(R.drawable.gray_circle);
      layout.addView(imageView[i]);
     }
    }

    private void selectDot(int position){
     for(int i=0;i<imageView.length;i++){
      if(i==position) imageView[i].setImageResource(R.drawable.black_circle);
      else imageView[i].setImageResource(R.drawable.gray_circle);
     }
    }
}

ImageAdapter.java

package com.dearpeople.android.test.gallery;
import android.content.*;
import android.content.res.*;
import android.view.*;
import android.widget.*;
public class ImageAdapter extends BaseAdapter {
 int mGalleryItemBackground;
 private Context mContext;
 private Integer[] mImageIds = {
   R.drawable.images01,
   R.drawable.images02,
   R.drawable.images03,
   R.drawable.images04,
   R.drawable.images05,
   R.drawable.images06,
   R.drawable.images07,
   R.drawable.images08,
   R.drawable.images09,
   R.drawable.images10
   };
 public ImageAdapter(Context c) {
  mContext = c;
  TypedArray a = c.obtainStyledAttributes(R.styleable.GalleryTheme);
  mGalleryItemBackground = a.getResourceId(R.styleable.GalleryTheme_android_galleryItemBackground, 0);
  a.recycle();
 }
 public int getCount() {
   return mImageIds.length;
 }
 public Object getItem(int position) {
  return position;
 }
 public long getItemId(int position) {
  return position;
 }
 public View getView(int position, View convertView, ViewGroup parent) {
  ImageView i = new ImageView(mContext);
  i.setImageResource(mImageIds[position]);
  i.setLayoutParams(new Gallery.LayoutParams(250, 200));
  i.setScaleType(ImageView.ScaleType.FIT_XY);
  i.setBackgroundResource(mGalleryItemBackground );
  return i;
 }
}
